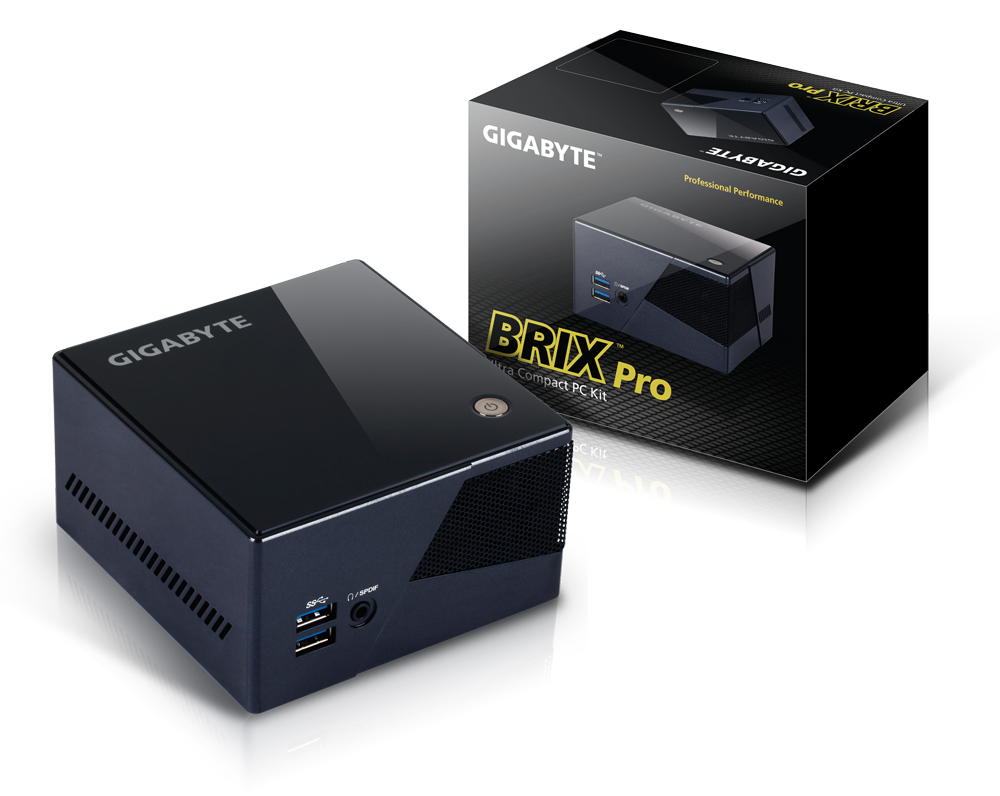

Available in black and red, with a choice Intel® Core™ i7 4770R processors, the BRIX Pro is a DIY PC kit, shipping with a Wi-Fi Mini PCIe module pre-installed, plus power adapter and cable.
The BRIX Pro gives users the flexibility to independently choose integrated storage and system memory sizes, with two SO-DIMM DDR3L slots plus support for both mSATA SSD and standard 2.5” SSD installation.
- Features Intel® 4th generation Core™ processors
- Intel® Iris™ Pro graphics 5200
- Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)
- Ultra compact PC design - 0.79L (62 x 111.4 x 114.4 mm)
- 1 x mSATA SSD Slot
- 2 x SO-DIMM DDR3L Slots (1333 / 1600 MHz)
- IEEE 802.11 a/b/g/n/ac Wi-Fi / Bluetooth 4.0 Mini-PCIe card
- HDMI plus Mini DisplayPort Outputs (supports dual displays)
- 4K resolution output (4096 x 2304 via HDMI)
- 4 x USB 3.0
- Gigabit LAN
- Headphone jack with S/PDIF
- VESA mounting bracket (75 x 75mm + 100 x 100mm)
